MITTS & MERRILL RA CNC 100/750 Keyseater
Keyseaters

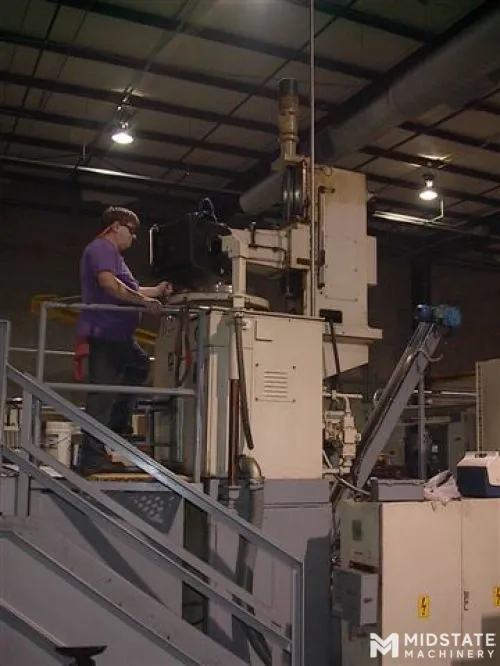

4” MITTS & MERRILL/ FROMAG, Model: RA CNC 100/750, CNC KEYSEATER
MAXIMUM KEYWAY WIDTH: 1/8" TO 4"
MAXIMUM KEYWAY LENGTH: 30"
BORE DIAMETER: 1/2" TO 20"
FEED RATE: 0.0004" TO 0.0118"
CUTTING SPEED: 0 TO 75 FT / MIN
RETURN SPEED: 0 TO 150 FT / MIN
MAXIMUM WORKPIECE WEIGHT: 35,000 LBS.
CUTTING FORCE: 30,000 LBS.
TABLE SIZE: 19.68" L-R X 30.31" F-B
OPERATING HEIGHT: 43.30"
MOTOR: APPROX. 20 HP
HYDRAULIC TOOL RETRACTION
CNC ROTARY TABLE (for spiral and spline cutting)
SPIRAL CNC CONTROL SYSTEM
COMPLETE HYDRAULIC SYSTEM
OVER-ARM
TOOL GUIDE
CHIP REMOVAL CONVEYOR WITH CUTTING OIL RECOVERY SYSTEM
