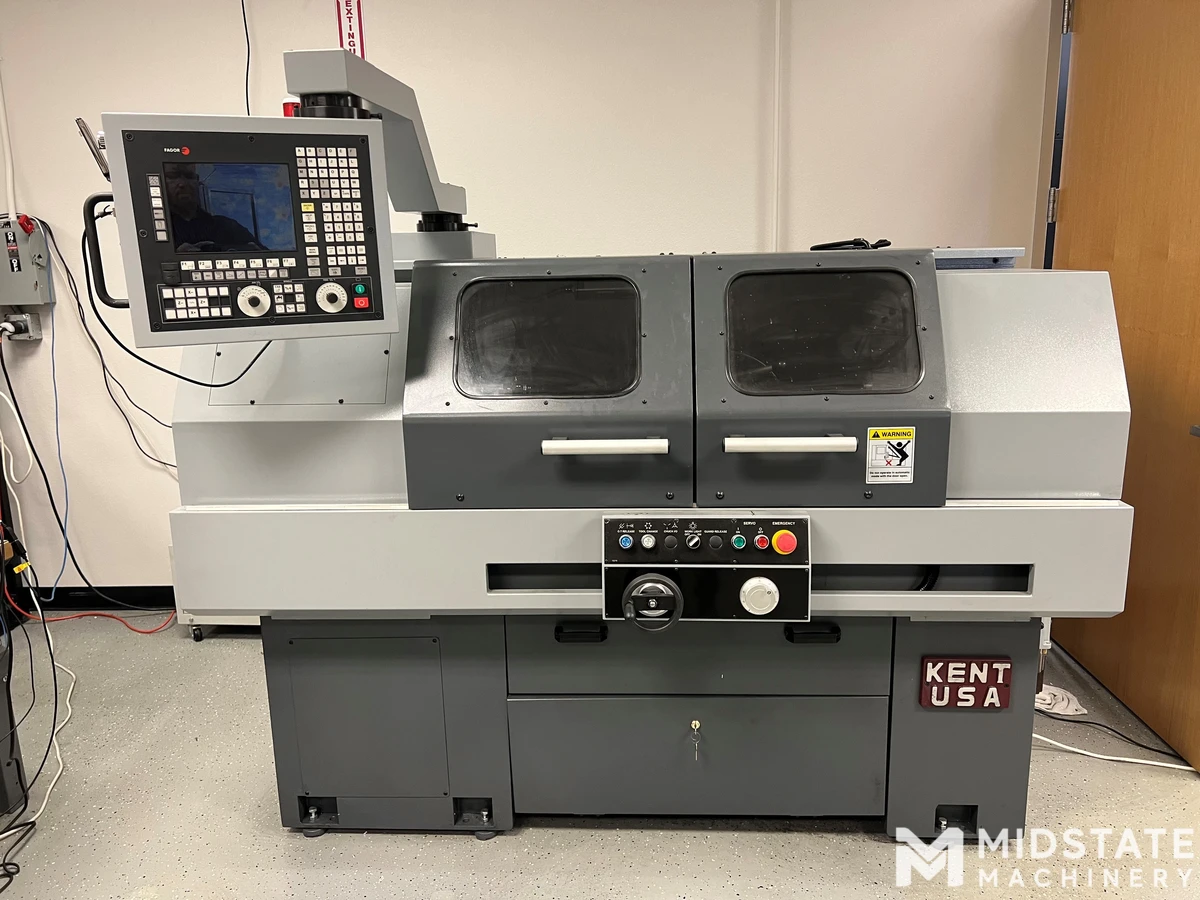

KENT CSM-1440 CNC Lathe

Swing over Bed 14”

Swing Over Cross Slide 7.48”

Distance between centers 40”

Width of Bed 8.1”

Spindle Nose Camlock D1-4 (Opt.ASA A1-4)

Spindle Bore 1.5”

Spindle Taper M.T. #5

Spindle Speed 50-2000 RPM

Longitudinal Travel(Z-Axis) 33”

Cross Slide Travel(X-Axis) 8”

Z-Axis Ballscrew Diameter 1.259” ,5 mm pitch

X-Axis Ballscrew Diameter 0.98” ,5mm pitch

Z-Axis Rapid traverse Speed 236”/min

X-Axis Rapid Traverse Speed 236”/min

Tailstock Quill Diameter 1-3/4”

Tailstock Quill Diameter 4-3/4”

Tailstock Taper M.T. #3

Spindle Motor 5HP(OPT.7.5HP)

Ac Servo Motor (Z-Axis) 1.1 HP

AC Servo Motor (X-Axis) 1.1 HP

Net Weight 2530 LBS

Gross Weight 2750 LBS

Packing Dimension 100”x 65”x 79”
