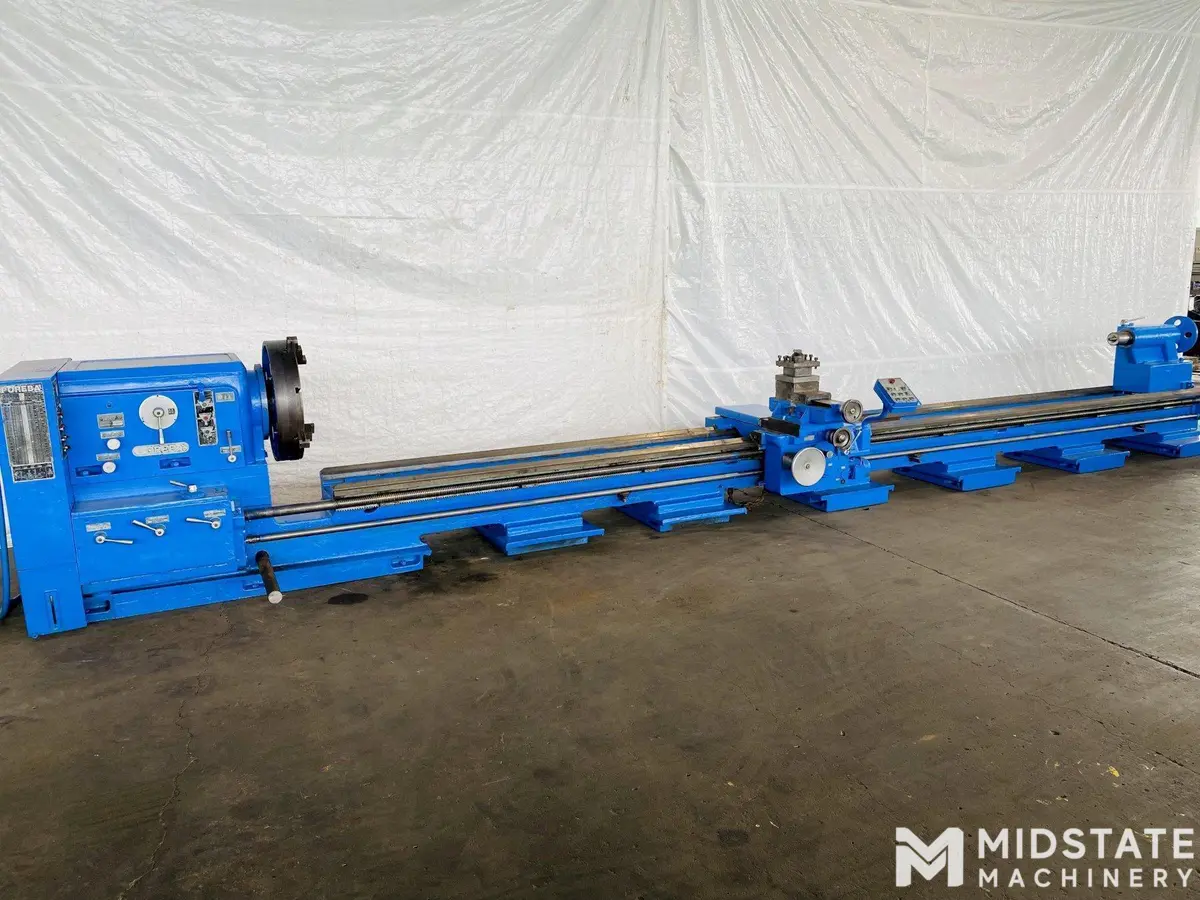

48" X 336" POREBA / TOOLMEX MODEL #TR115 HEAVY DUTY ENGINE LATHE 4.75" HOLE

SERIAL .................... 1101-041
MODEL ..................... TR-115
YEAR ...................... 1984
SWING OVER BED ............ 48"
SWING OVER SLIDE .......... 31"
SWING IN THE GAP .......... 59"
DISTANCE BETWEEN CENTERS .. 336" (28')
SPINDLE SPEEDS ............ (18) 5 TO 500 RPM
FEEDS LONGITUDINAL ........ (78) .0035 TO .400 IPR
ENGLISH THREADS ........... (7) 1 TO 120 TPI
METRIC THREADS ............ (58) 0.25 TO 30 MM PITCH
SPINDLE BORE .............. 4.75"
CHUCK ..................... 31" 4 JAW
RAPID TRAVERSE ............ YES
BORING BAR TOOL HOLDER .... YES
MOTOR ..................... 27 KW
