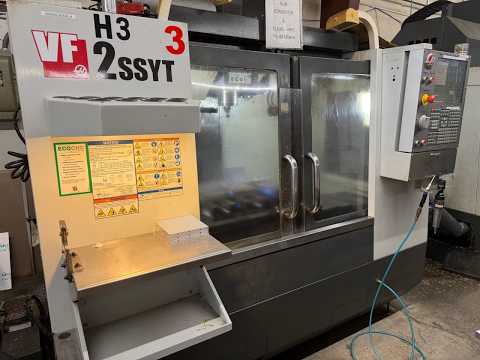

Haas VF-2SSYT Vertical Machining Center, New in 2012
Have one to sell?
ConditionUsed
1 available
Haas VF-2SSYT Vertical Machining Center, New in 2012
General Specifications:
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Table Size: 36" x 18"
Max. Table Weight: 1,500 lbs
Spindle Taper: 40 Taper
Max. Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Drive: Inline Direct-Drive
Max. Spindle Torque: 90 ft-lbf @ 2,000 RPM
Tool Changer Capacity: 24+1
Max. Cutting Feedrate: 833 IPM
Rapid Traverse Rate: 1,400 IPM
Coolant Capacity: 55 Gallons

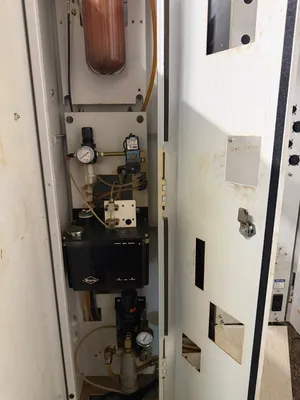

Air Required: 4 SCFM @ 100 PSI
Electrical: 220 VAC, 3 Phase
Full Load Amps: 70 Amps
Machine Weight: 8,380 lbs

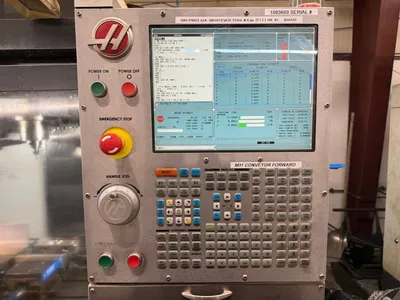

Haas Control
5- Axis Ready (Has 4Th & 5Th Axis Drives Wiring and Parameters Fully Active)

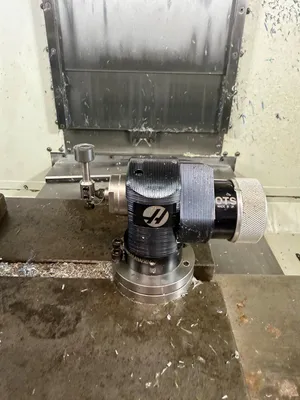

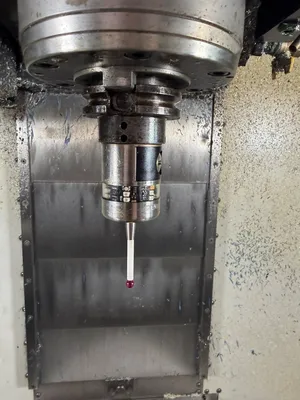

WIPS System (Includes Wireless Tool Setter and Work Probe)
Side Mount Twin-Arm ATC (24+1 Station)
Automated Chip Auger System
*Trunnion Table and Vises Not Included. Machine is under power and available to demo*
Haas VF-2SSYT Vertical Machining Center, New in 2012
Imperial
| X-Axis | 30" |
| Y-Axis | 20" |
| Z-Axis | 20" |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 24 |
| Taper | CT or BT 40 |
| Table-W | 18" |
| Table-L | 36" |
| # Axis | 3 |
| Control | CNC (Haas) |
| Dimensions | 106" x 102" x 101" |
| Weight | 8,380 lbs |
General Specifications:
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Table Size: 36" x 18"
Max. Table Weight: 1,500 lbs
Spindle Taper: 40 Taper
Max. Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Drive: Inline Direct-Drive
Max. Spindle Torque: 90 ft-lbf @ 2,000 RPM
Tool Changer Capacity: 24+1
Max. Cutting Feedrate: 833 IPM
Rapid Traverse Rate: 1,400 IPM
Coolant Capacity: 55 Gallons
Air Required: 4 SCFM @ 100 PSI
Electrical: 220 VAC, 3 Phase
Full Load Amps: 70 Amps
Machine Weight: 8,380 lbs
Haas Control
5- Axis Ready (Has 4Th & 5Th Axis Drives Wiring and Parameters Fully Active)
WIPS System (Includes Wireless Tool Setter and Work Probe)
Side Mount Twin-Arm ATC (24+1 Station)
Automated Chip Auger System
*Trunnion Table and Vises Not Included. Machine is under power and available to demo*
