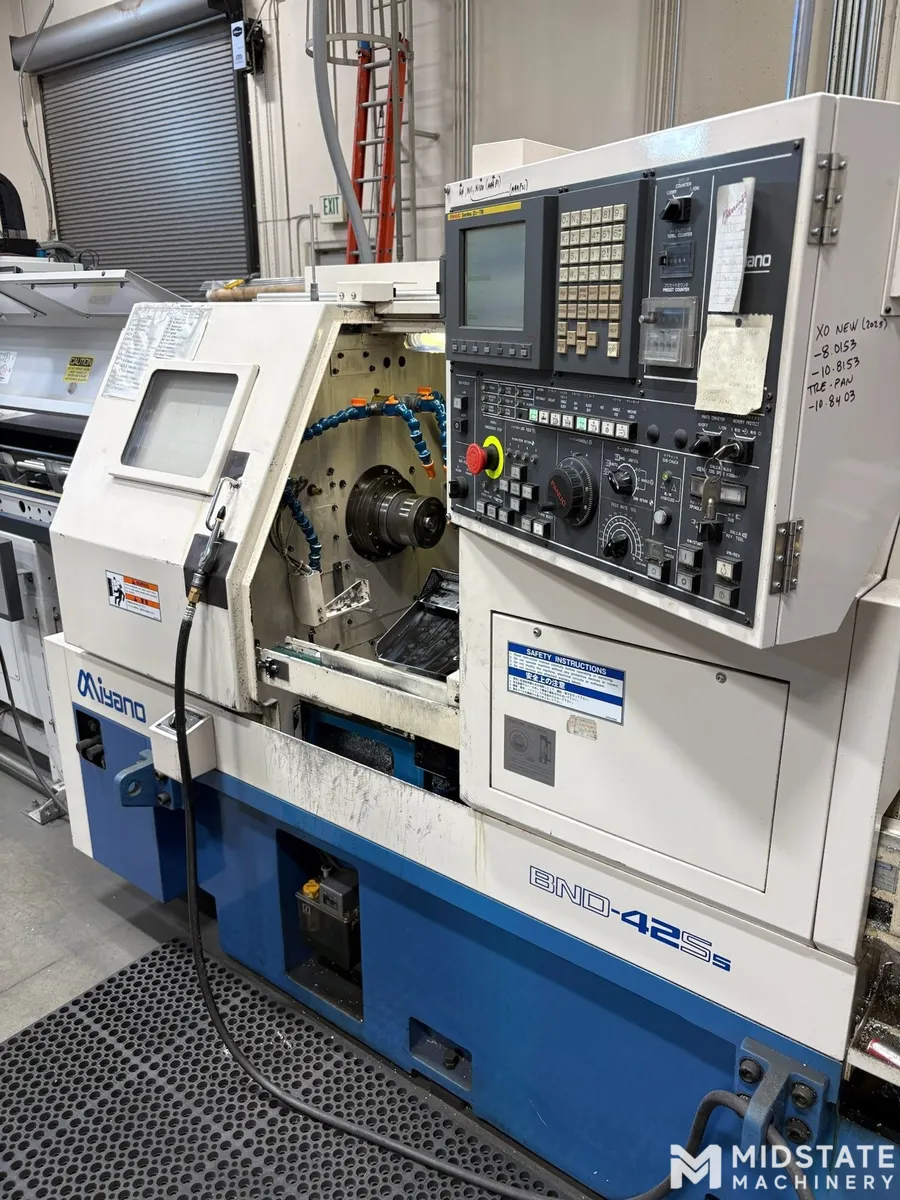

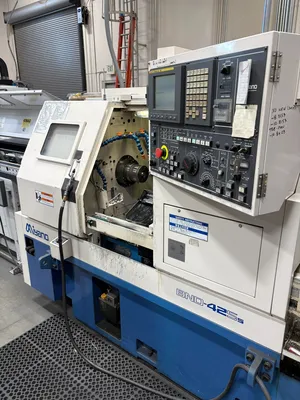

Miyano BND-42S5 CNC Turning Center
Have one to sell?
ConditionUsed
1 available
Miyano BND-42S5 CNC Turning Center
Sub-Spindle, Live Tool, C-Axis
Max. bar capacity 1-5/16"
Max. turning length 4.92"
Max. turret tool stations 12
X-axis slide travel 5.51"
Z-axis slide travel 11.02"
Tool shank size sq. 0.79"
Tool hole diameter 0.98"
Max. no. of revolving tools 6
Main spindle speed range 170-5,000 RPM
Spindle motor 10 HP
Machine weight 8,400 lbs.
Fanuc 21TB Control

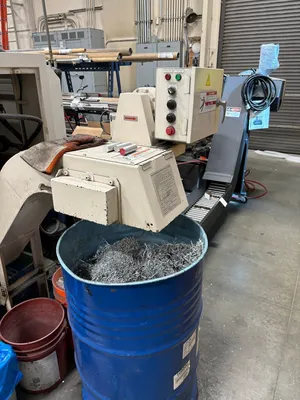

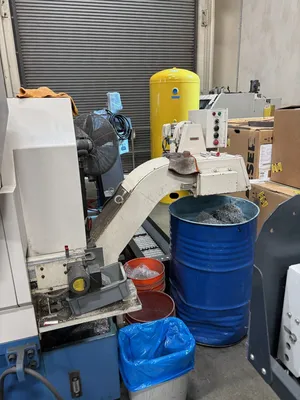

Chip Conveyor
Sub-Spindle
Live Tool
C-Axis
Parts Catcher
Parts Conveyor
Misc. OD & ID Tools
(1) Live Tool
Collet Chuck Main/Sub
Miyano BND-42S5 CNC Turning Center
Sub-Spindle, Live Tool, C-Axis
Imperial
| Chuck Size | 5" |
| Bar Capacity | 1.625" |
| Power | 7.5 hp |
| Max RPM | 5,000 RPM |
Max. bar capacity 1-5/16"
Max. turning length 4.92"
Max. turret tool stations 12
X-axis slide travel 5.51"
Z-axis slide travel 11.02"
Tool shank size sq. 0.79"
Tool hole diameter 0.98"
Max. no. of revolving tools 6
Main spindle speed range 170-5,000 RPM
Spindle motor 10 HP
Machine weight 8,400 lbs.
Fanuc 21TB Control
Chip Conveyor
Sub-Spindle
Live Tool
C-Axis
Parts Catcher
Parts Conveyor
Misc. OD & ID Tools
(1) Live Tool
Collet Chuck Main/Sub
